🔧 Inside a Modern Diesel Engine: Common Rail Injection System Explained
Modern diesel engines rely on advanced fuel injection technology to maximize performance, fuel efficiency, and emissions control. The Common Rail Injection System is at the heart of this transformation, replacing older mechanical systems with precise, high-pressure, computer-controlled fuel delivery.

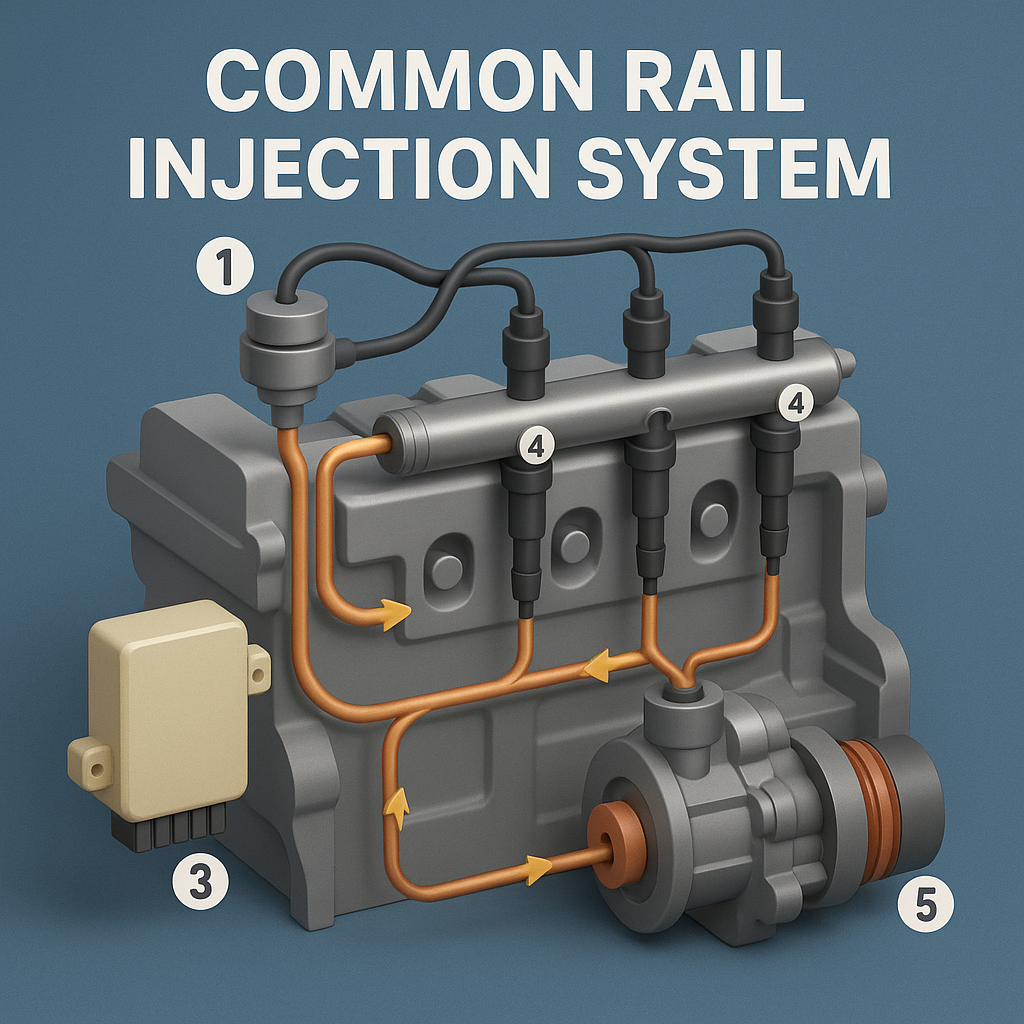

How It Works: Key Components
1️⃣ High-Pressure Pump (5)
- The pump draws diesel from the fuel tank and compresses it to extremely high pressures (sometimes up to 2,500 bar or more!).
- It’s mechanically driven by the engine, ensuring a steady supply of pressurized fuel.
2️⃣ Common Rail (2)
- This is a rigid, reinforced tube or ‘rail’ that acts as a reservoir, storing fuel at high pressure.
- The common rail supplies all injectors with the same fuel pressure at any given moment, which means every cylinder gets precisely what it needs.
3️⃣ Injectors (4)
- These are electrically controlled valves, one for each cylinder.
- The engine control unit (ECU) tells each injector exactly when and how much fuel to spray—down to a fraction of a millisecond!
- This allows for multiple injections per cycle (pre-injection, main injection, post-injection) for quieter operation and better combustion.
4️⃣ Pressure Sensor & Regulator (1 & 3)
- The pressure sensor constantly monitors fuel pressure in the rail.
- The regulator (sometimes built into the pump or rail) adjusts the pump output or returns excess fuel to the tank to maintain optimal pressure.
🚦 Why Is This System So Effective?
- Precise Fuel Delivery: The system allows fine-tuned, computer-controlled injection timing and quantity for each cylinder.
- Better Power & Torque: Consistent high pressure and accurate injection result in more powerful, responsive engines.
- Lower Emissions: Better atomization and combustion mean less unburned fuel and reduced pollutants.
- Improved Fuel Economy: Only the exact amount of fuel needed is used, reducing waste.
- Quieter Operation: Multiple, smaller injections reduce the characteristic “diesel knock” sound.
🏁 In Short:
The common rail system is the backbone of modern diesel performance. It delivers precise, high-pressure fuel to each injector, managed by smart sensors and regulators, resulting in engines that are more powerful, cleaner, and more efficient than ever before.
